This ultra-heavy duty 3/0 brass split bolt connector pairs with 2 AWG Solid Copper to 3/0 AWG Stranded Copper conductors. Built with an extra-high-strength brass alloy, it delivers high current-carrying capacity and excellent vibration resistance, perfect for industrial substation wiring work and grounding solderless splicing.
Product Dimension Chart (mm)
|
Parameter |
Value |
Unit |
|
Overall Length (L) |
48 |
mm |
|
Bolt Thread Size (M) |
21.5 |
mm |
|
Conductor Opening Height (H) |
12.2 |
mm |
|
Hex Nut Width Across Flats (S) |
27.5 |
mm |
|
Packing / Qty. Per Carton |
100 |
pcs |

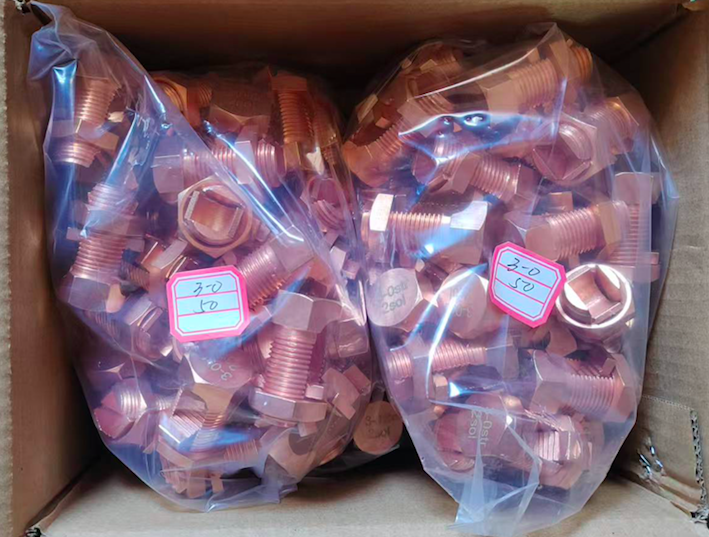

Packaging：Standard industrial carton packaging(100pcs/ctn), moisture-proof and durable, suitable for bulk supply, storage and global shipment.
Installation & Safety Notes
-
For 2 AWG solid to 3/0 AWG stranded copper conductors; installation must be performed by qualified electricians.
-
Use precise torque control for the vibration-resistant design to withstand substation mechanical vibration.
-
It is only intended for fixed substation grounding and not for mobile or frequently disassembled circuits.
-
Conduct insulation and conductivity tests post-installation to ensure substation system safety, and strictly adhere to substation electrical safety standards during operation.
Full Range Reference:
Contact Us: Interested in this substation grounding solderless connector?
